• Powerful 2HP Direct Drive Motor
  • Stainless Steel for Durability and
    Ease of Maintenance
  • Superior Bridge Style Design
  • Miter Cutting Capability
  • Precision Guide-Ways
  • Lightweight and Compact

The DalTool 1034BrS Tile Saw is designed to deliver Fast and Chip Free Cutting on Ceramic, Porcelain, Marble and Granite Tile up to 34".

The DalTool 1034BrS is equipped with a Powerful 2HP Direct Drive Motor and Plunge Cutting Capability to cut even the Hardest Tile. The 1034Brs has an integrated Miter Cutting Capability.

Unlike Table Saws, the Bridge Style Design of the machine prevents cutting debris from ending up in the Precision Guide-Ways. This allows for Continuous Smooth Cutting Movements and Accurate Cuts.

Built to last

The DalTool 1034BrS is made of Stainless Steel for Durability and Ease of Maintenance.

Recommended Tile Blade

DalTool® 10" (250 mm) Premium Quality Wet Cutting Blade for Ceramic, Porcelain, Marble and Granite Tile. Arbor 5/8". 10 mm Rim Height for Longer Blade Life. Part # 9999 540413

Technical Specifications:

    DalTool 1034BrS
Part #   9999 542664
Motor (Direct Drive) V/Hz 115/60
Horsepower HP 2
Blade RPM RPM 3,360
Blade Diameter Inch 10
Arbor Inch 5/8

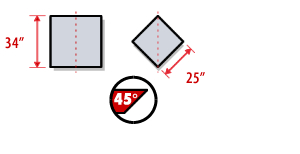

Rips Tile Inch max. 34
Tile Size Diagonal Cuts Inch max.25
Cutting Height Inch max. 2
Miter Cutting Capability -- yes
Plunge Cutting Capability -- yes
Weight lbs 115
Dimensions without Legs Inch 48 x 19 x 24

What's in the Box

  • DalTool 1034BrS Tile Saw
  • 10" Diamond Wet Blade
  • Waterpump
  • Detachable Legs
  • 90° Stainless Steel Squaring Arm with 45° Capability.



Optional Side Table

Stainless Steel Side Table for DalTool 1034BrS. Complete with tile stop, ruler and detachable leg. Dimensions: 16" x 16"

Part #: 9999 543468

Optional Legs with Wheels

Detachable legs with wheels
for easy transportation.
Set of 2.

Part #: 9999 546432

Rodia Tile Blades

DalTool offers a wide range of Premium Quality Specialty Tile Blades for both wet & dry use.
