DalTool - Unique Tile Cutting & Drilling Equipment


	Available as 29" and 37" models Hardened lightweight aluminum baseplate Chromed and rectified solid steel guides Direct view on scoring wheel and cutting line Wide fixed tile stop Supplied with robust carrying case

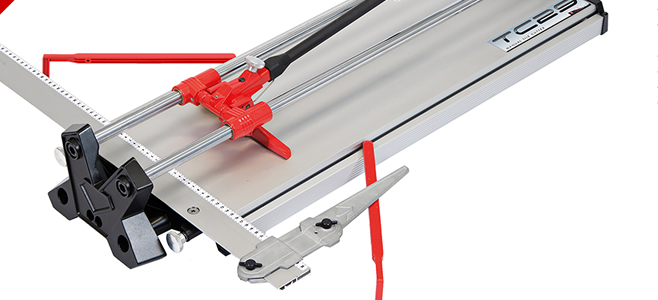

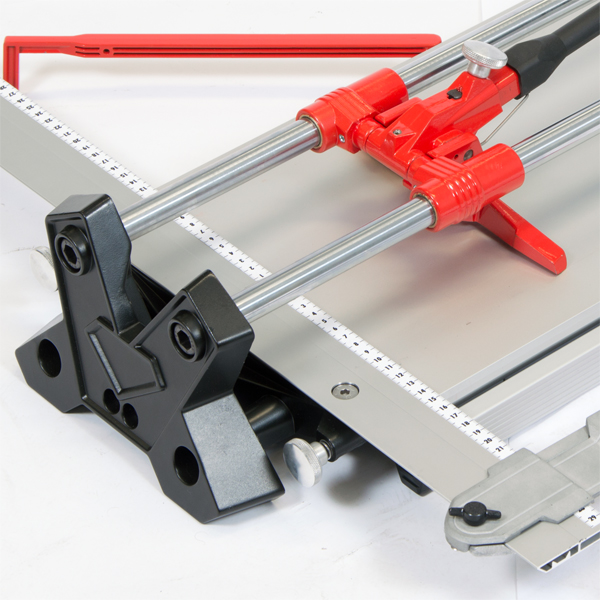

DalTool® introduces its latest line of Professional Tile Cutters. The new DalTool® TC series of Tile Cutters are made of hardened lightweight aluminum with a breaking strip for the precise cutting of ceramic tile.

The sizes available are 29” - 37”.

The cutters have 2 tile support wings that support the tile during the cutting process. The “wings” are integrated into the side of the machine and are retractable when the machine is not in use.

Recommended Scoring Wheels

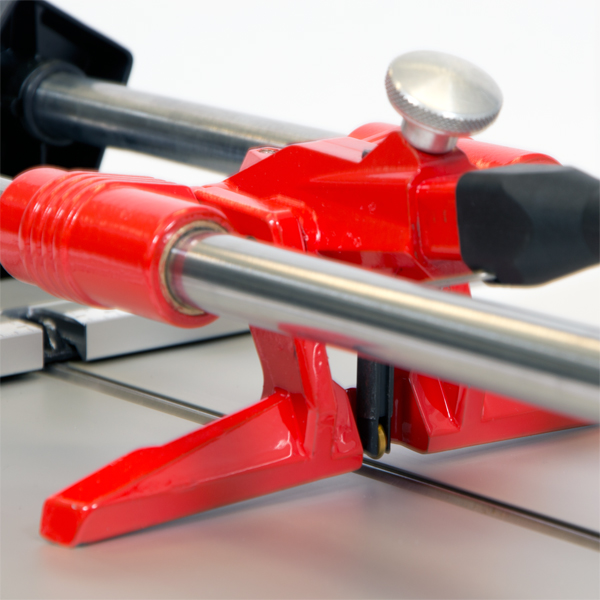

We recommend you use original DalTool® Premium & Titanium Scoring Wheels with your Tile Cutter, which have proven their reliability when it comes to realizing Precise Cuts time after time.

Technical Specifications:

		DalTool TC29	DalTool TC37
Part #		9999 566999	9999 567000

Cutting Length Straight	Inch	max. 29	max. 37
Cutting length diagonal	Inch	max. tile 20 x 20	max. tile 26 x 26
Tile thickness max.	Inch	7/8	7/8
Breaking power	lbs	3,300	3,300
Dimensions	Inch	38 x 12 1/2 x 6	46 x 12 1/2 x 6
Weight	lbs	25	28.5

What's in the Box

29" or 37" Tile Cutter
3/8" (10 mm) Premium quality scoring wheel
adjustable tile stop
integrated tile supports

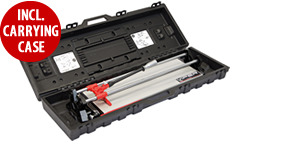

Carrying case.

DalTool Scoring Wheels Premium

Premium Quality Scoring
Wheels for DalTool or other brand manual tile cutters.

1/4" (6 mm)	9999 539523
3/8" (10 mm)	9999 539524
3/4" (18 mm)	9999 539525

DalTool Scoring Wheels Titanium

Extra Hard Titanium Scoring Wheels for DalTool or other brand manual tile cutters.

3/8" (10 mm)	9999 543469
3/4" (18 mm)	9999 543470
