DalTool - Unique Tile Cutting & Drilling Equipment


	For wet use with DalTool Premium Tile Bits Phenomenal Drilling Performance Bit Life 300+ Holes Holes 3/8" up to 5"

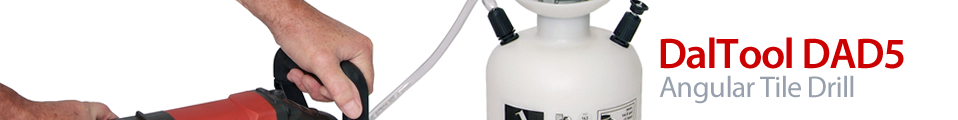

The DalTool® DAD5 Angular Tile Drill is designed to deliver Accurate and Chip Free Holes in the hardest and most delicate types of tile.

The variable speed and new Diamond Bit Technology of the DAD5 allows for optimal drilling performance at any diameter.

The DAD5 Diamond Bit Capacity ranges from 3/8" up to 5".

Phenomenal Improvement in Drilling Performance

DalTool® PREMIUM QUALITY Diamond Tile Bits offer the latest in Diamond Bit Technology and are unparalleled in Drilling Speed & Quality. Futhermore they offer an amazing Bit Life of at least 300 holes per bit and often even more.

The DalTool® Line of Core Bits covers all common diameters from 1/6" (4 mm) up to 5" (125 mm).

Technical Specifications:

		DAD5
Part #		9999 546437
Premium Tile Bit Range	Inch	3/8" - 5"
Power	W/HP	1,200/1.8
Voltage/Frequency	V/Hz	115/60
No Load Speed	RPM	3,000 - 10,000
Weight	lbs	10

What's in the Box

DalTool® DAD5 Angular Tile Drill
GFCI Switch
Adjustable Drilling Guide
Water Supply Tank
Ergonomic Side Grip
Socket Head Screwdriver 3 mm
Adapter for Bits up to 2 5/8"
Adapter for Water Hose

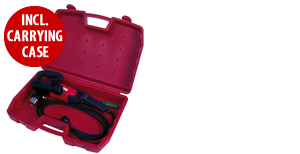

Carrying Case

DalTool Tile Bits Premium

Premium Quality Tile Bits for DAD5. Bit Life 300+ Holes and Excellent Cutting Finish.

Daltool Polishing
Pad Kit

For Wet Polishing of Granite.
Fits DalTool DAD2 and DAD5 Angular Tile Drills.

Daltool Dressing Stone

For Dull or Glazed Bits.

Part # 9999 546429
